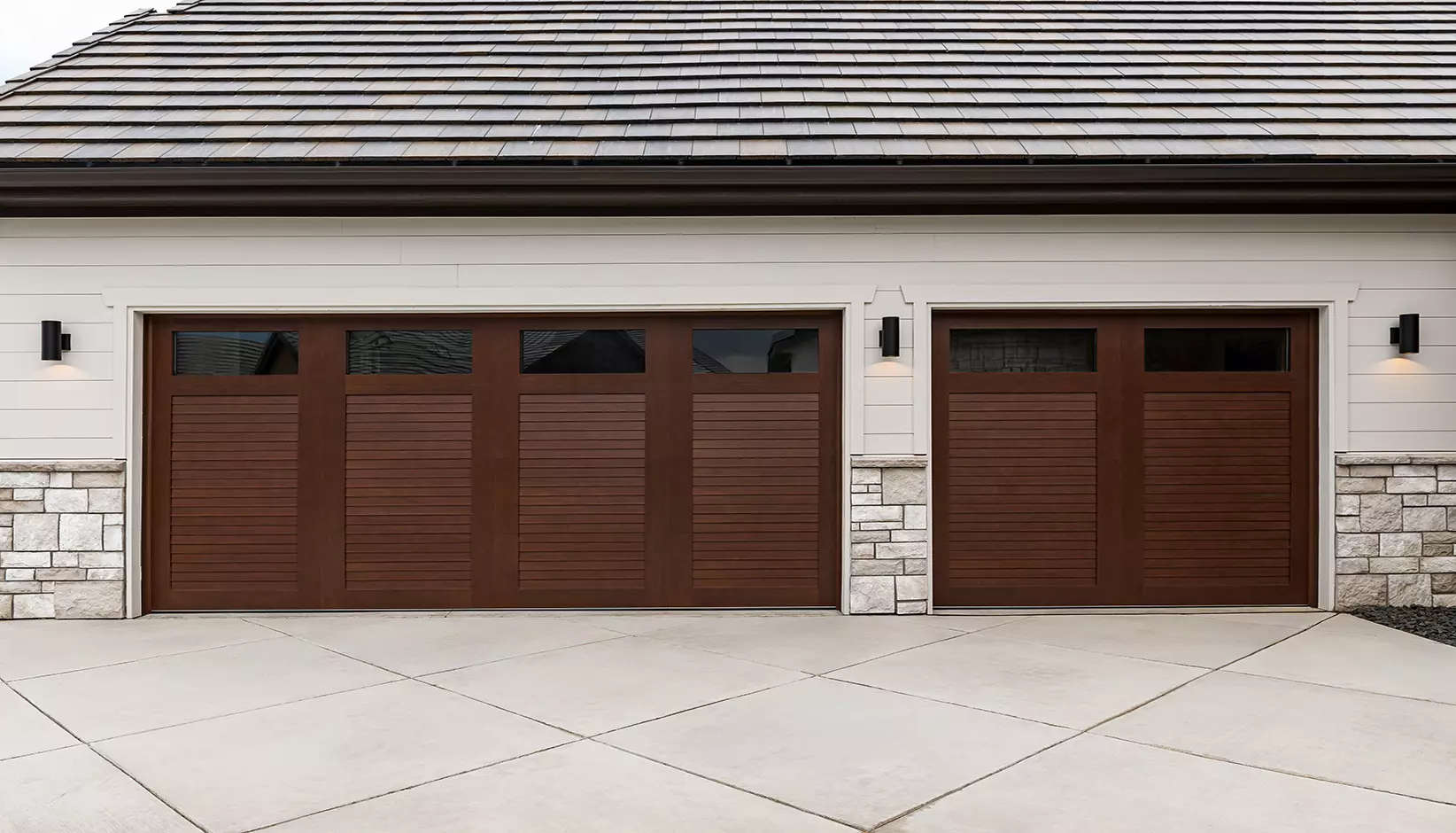

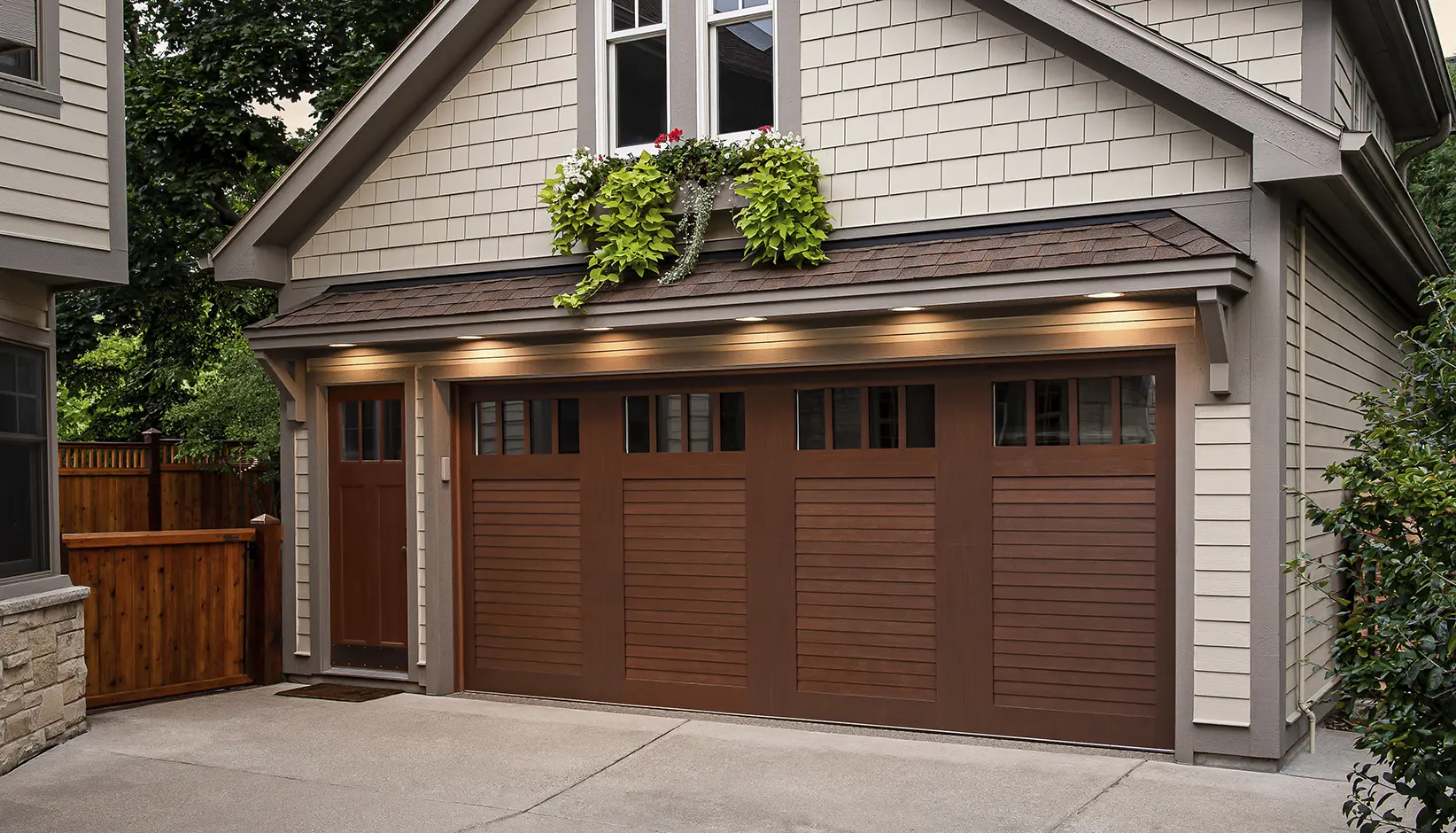

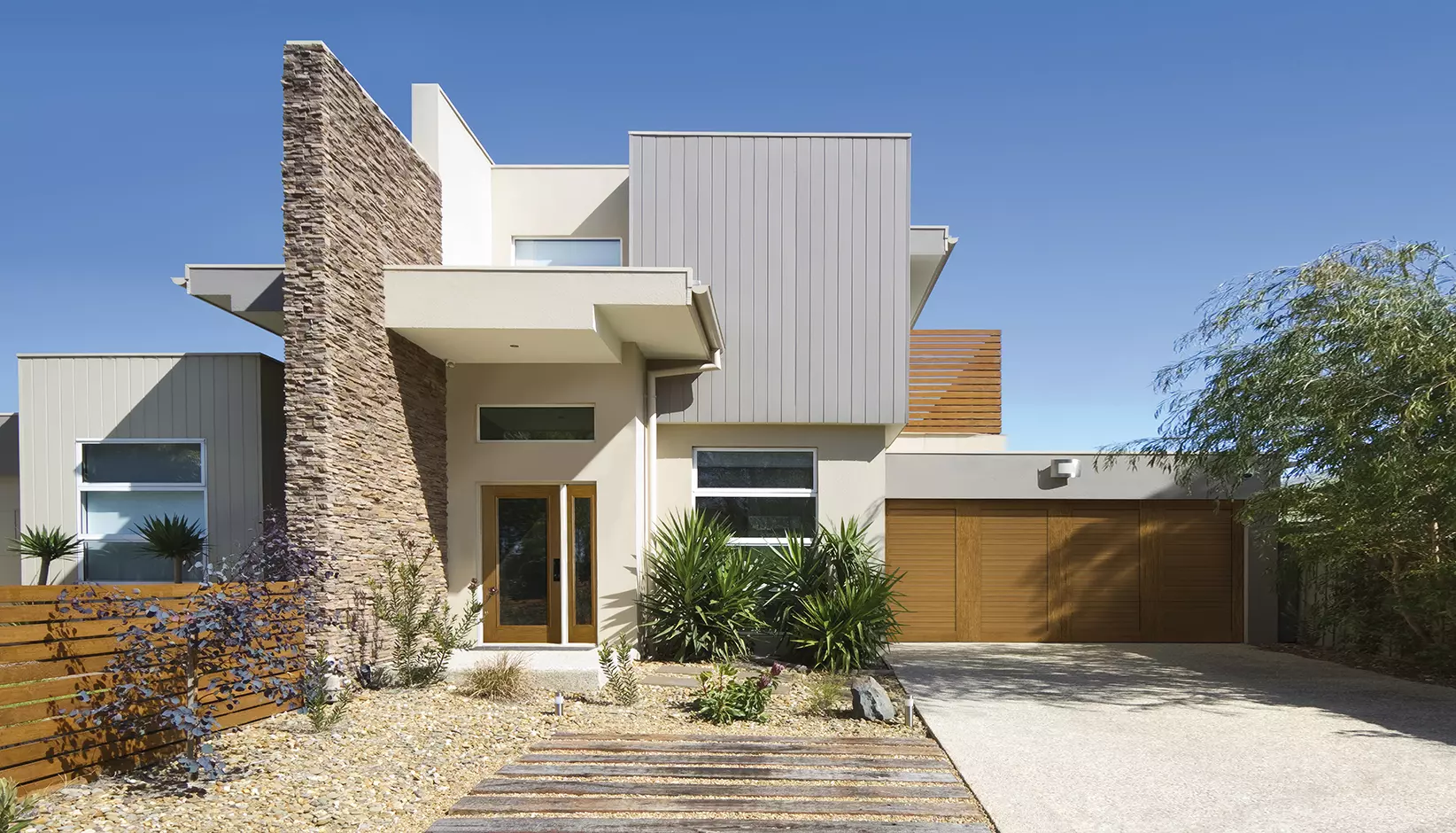

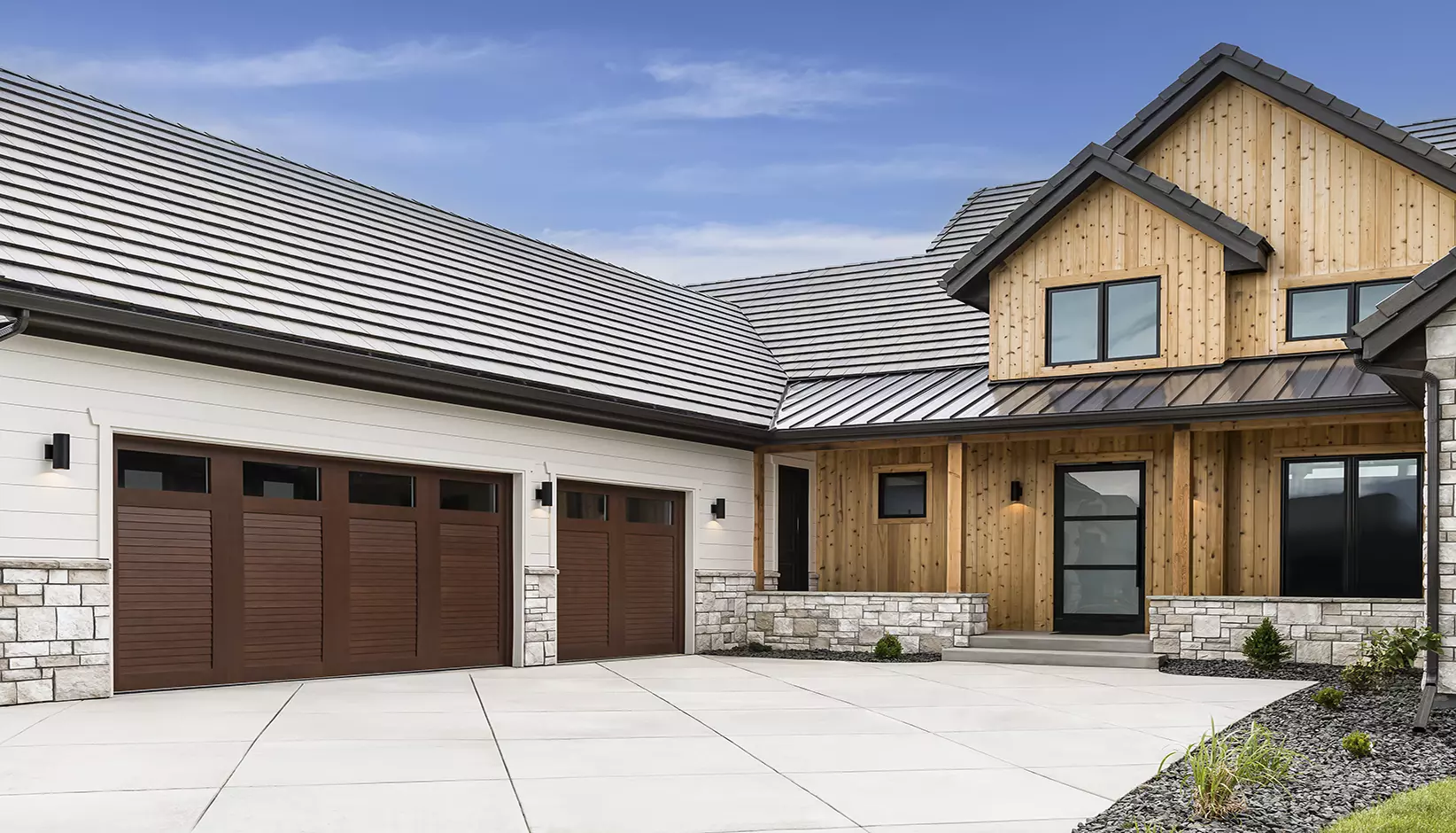

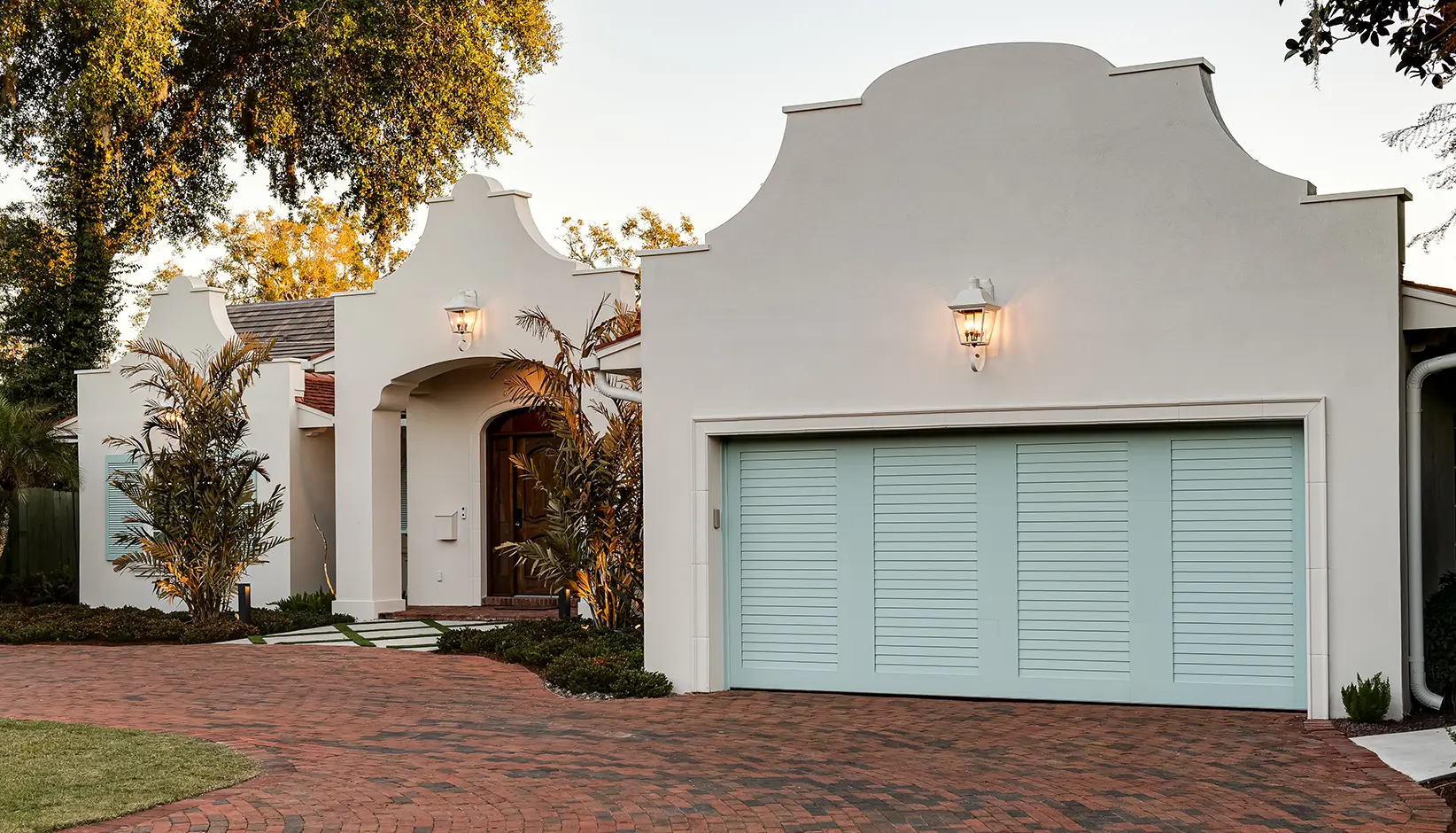

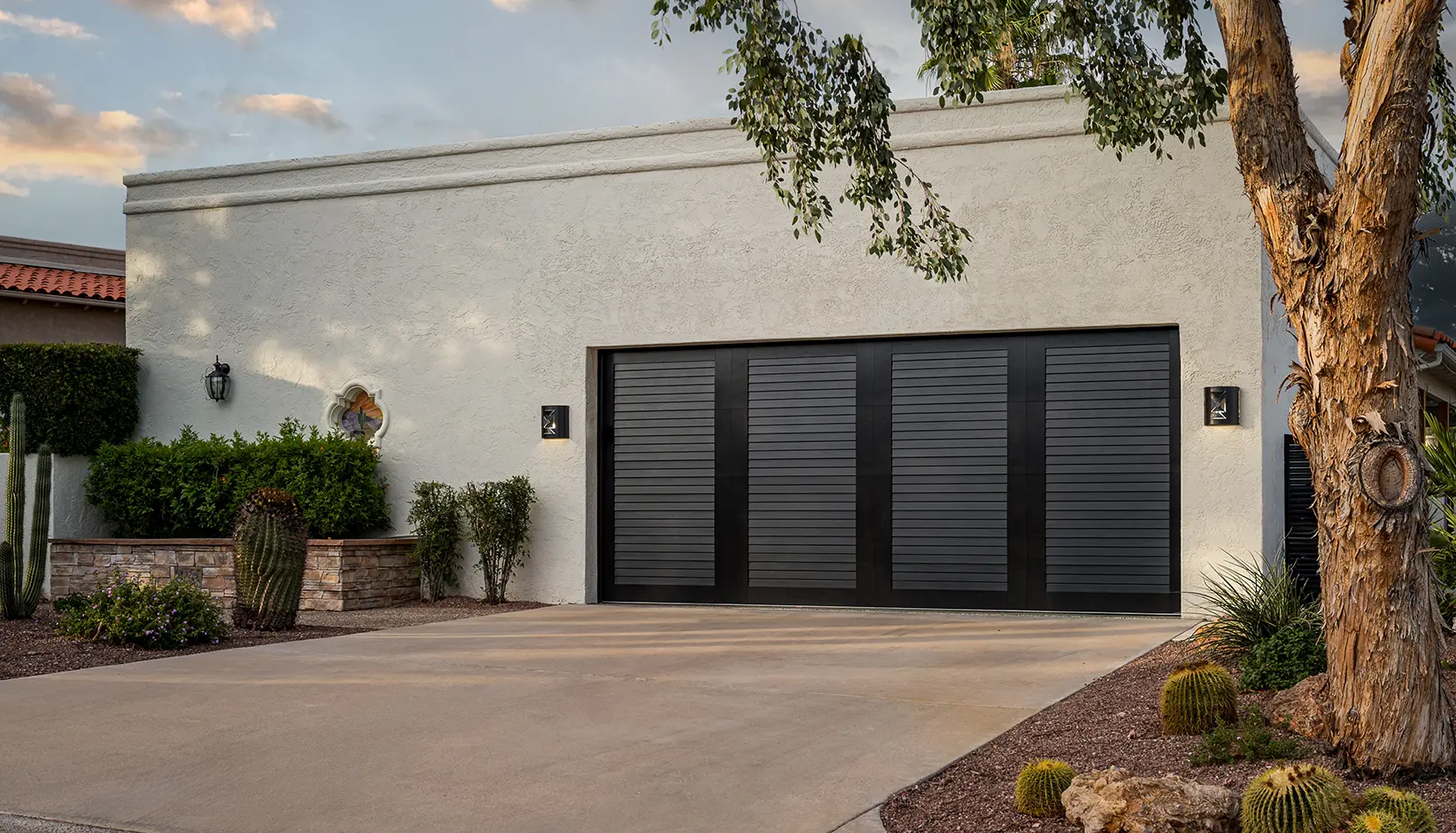

Canyon Ridge® Louver

Louver Garage Doors

Add charm to your home with plantation shutter style Canyon Ridge® Louver garage doors. This versatile design perfectly complements coastal or colonial homes, and is a standout piece on traditional exteriors or modern farmhouses. Get the look of authentic louver doors with the convenience of upward operation.

Overview

Overview

Clopay Canyon Ridge® Louver garage doors are inspired by plantation shutters. These doors are constructed with steel for strength and durability, and molded composite overlays for a truly authentic look. These doors feature:

  • 5-layer steel base with faux wood cladding and overlay.
  • Faux wood-look composite cladding and overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate.
  • Colors include: Walnut, Dark, Medium, Slate, Black, White, and Primed. (Additional Options)
  • 2" Intellicore®  polyurethane insulation with a thermal break. R-Values up to 20.4.
  • WINDCODE® door reinforcement product available for high wind load applications. (Click for details

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Design Options

Door Designs

SERIES 4

Design 41
Design 41
Design 42
Design 42
Design 43
Design 43
Design 44
Design 44
Design 45
Design 45
Design 46
Design 46
Design 47
Design 47

SERIES 5

Design 51
Design 51
Design 52
Design 52
Design 53
Design 53
Design 54
Design 54
Design 55
Design 55

For more information regarding construction options per panel style, click here

Top Sections

SERIES 4 & 5 WINDOW DESIGNS

REC11
REC11
REC13
REC13
REC14
REC14
SQ23
SQ23
SQ24
SQ24

Material Options

COMPOSITE CLADDING/BASE MATERIALS

Louver Mahogany
Louver Mahogany
Ultra-Grain® Finish Clear Cypress or Solid Color Steel
Ultra-Grain® Finish Clear Cypress or Solid Color Steel

Composite Overlay Materials

Mahogany
Mahogany
Clear Cypress
Clear Cypress

Hardware Designs

HANDLES

SPADE LIFT HANDLES<br>(included)
SPADE LIFT HANDLES
(included)
SPEAR LIFT HANDLES
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES
COLONIAL LIFT HANDLES
DECORATIVE LIFT HANDLES
DECORATIVE LIFT HANDLES
RING DOOR KNOCKER
RING DOOR KNOCKER
ESCUTCHEON PLATE(S)
ESCUTCHEON PLATE(S)
TWISTED
TWISTED "L" HANDLES

HINGES

SPADE STRAP HINGE
SPADE STRAP HINGE
SPEAR STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE
COLONIAL STRAP HINGE
Construction

Clopay® Canyon Ridge® Louver garage doors are built five layers strong. The faux wood-look composite overlay and cladding surfaces are low maintenance, durable and won’t rot, warp or crack.

canyon ridge limited edition construction cutaway
intellicore header
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability. (Click for details)

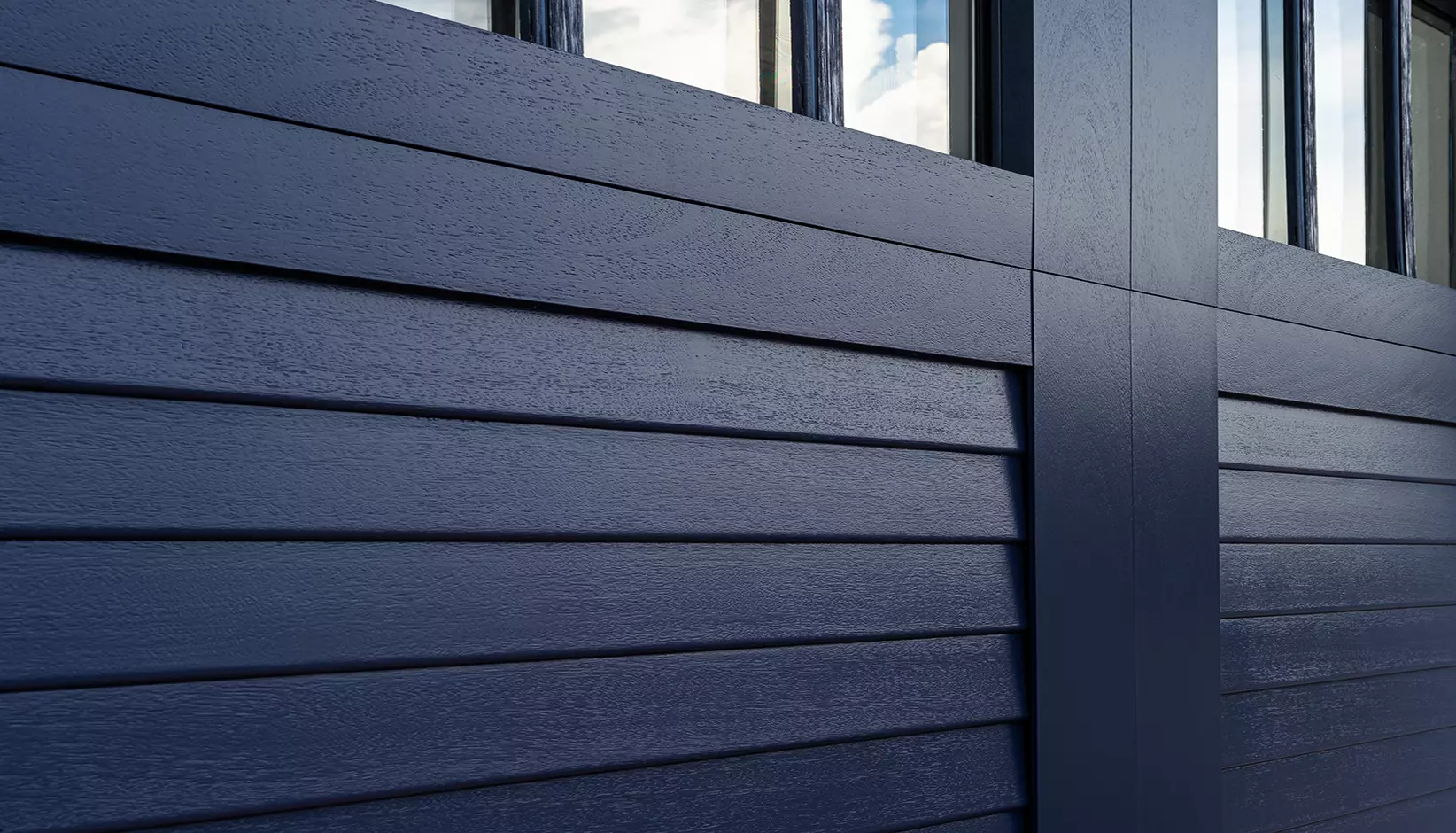

  • Door sample shown in Slate Finish.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
  • Window grilles are removable for easy cleaning.
  • Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Color Options

Color Options

WALNUT FINISH
WALNUT FINISH
DARK FINISH
DARK FINISH
MEDIUM FINISH
MEDIUM FINISH
SLATE FINISH
SLATE FINISH
BLACK FINISH
BLACK FINISH
WHITE
WHITE
PRIMED
PRIMED
BRONZE*
BRONZE*
CHARCOAL*
CHARCOAL*


Steel surfaces have woodgrain texture

*Available on select models. For more information regarding color availability, click here.

Black and White available only in Mahogany.
Two-tone option available: One color for the base layer (Steel and Composite Cladding) and one color for the top layer (Composite Overlay).

Canyon Ridge Louver

Custom color available through ColorBlast® program.
