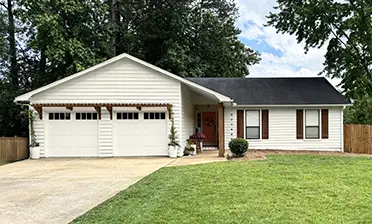

Bridgeport™ Steel

3-, 2- or 1-Layer Construction

Available in 3, 2 or 1-layer construction options

Customizable Options

Wide and narrow panel designs with optional insulation and windows. Available in 16 colors including Ultra-Grain wood-look and Lustra matte finishes. ColorBlast® custom paint colors also offered in 1,500 shades.

Insulation

Insulation options include 2” or 1-3/8” Intellicore® polyurethane or 1-5/16” vinyl-backed polystyrene. Insulated door R-values range from 6.3 to 18.4.

Door Reinforcement

WindCode® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

• California SB 1013
• Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
• Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
• New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Door Designs

Narrow Recessed Panel

Extended Recessed Panel

Depending on door height, exact door appearance and number of sections may be different than illustrations above. Click here for complete details.

18" sections not available on 1- and 2-layer doors.

Top Sections

SOLID TOP SECTIONS

Narrow Recessed Panel

Extended Recessed Panel

Top Sections with Windows

ARCH1 With GRILLE24

ARCH1 Plain

ARCH1 With Vertical GRILLE14

ARCH2 WITH GRILLE24

ARCH2 Plain

ARCH2 WITH VERTICAL GRILLE14

REC12

REC14

SQ22 Short

SQ24 Long

Plain Long

Plain Short

Wrought Iron Arch*

Wrought Iron Long*

Wrought Iron Short*

*Acrylic window designs.
Note for Double Top Sections: These are specific to double car doors, in addition to options above.

Specialty Glass Options

Clear

Seeded

Rain

Frosted

Obscure

Midnight Gray

Hardware Designs

Plates

Spade Step Plate

Spear Step Plate

Colonial Step Plate

Hinges

Spade Strap Hinge

Spear Strap Hinge

Colonial Strap Hinge

Handles

Spade Lift Handles

Spear Lift Handles

Colonial Lift Handles

Escutcheon Plates

Twisted "T" Handle

Twisted "L" Handles

*Doors come standard with color-matched lift handles.

Bridgeport Steel doors come in 3, 2, or 1-layer construction with multiple insulation choices.

1. Steel
2. Intellicore® Polyurethane or Polystyrene Insulation
3. Steel

Intellicore^® Insulation

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

Additional Features

• Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
• Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
• A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
• All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
• Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
• Window grilles are removable for easy cleaning.

Color Options

Standard Colors

Standard White (W)

Almond (W)

Desert Tan (W)

Sandtone (W)

Bronze (W)*

Chocolate (W)

Mocha Brown (W)*

Charcoal (W)*

Premium Colors

Black (W)

Ultra-Grain Oak Medium Finish (S)*

Ultra-Grain Oak Dark Finish (S)*

Ultra-Grain Oak Slate Finish (S)

Ultra-Grain Oak Walnut Finish (S)

Ultra-Grain Oak Slate Finish Low Gloss (W)±

Ultra-Grain Oak Walnut Finish Low Gloss (W)±

Lustra Charcoal (M)*

Lustra Black (M)*

Lustra Silver (M)*
