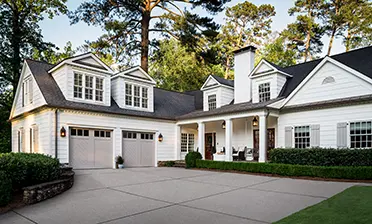

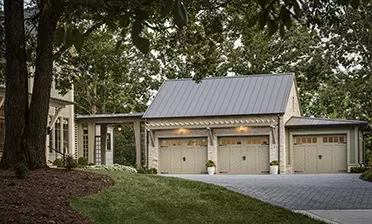

Canyon Ridge® Chevron
This eye-catching geometric pattern is now available in a low-maintenance composite material that looks and feels like real wood. This moisture-resistant door won’t rot, warp or crack and can be painted or stained for looks that last
Overview
5-Layer Construction
Steel + insulation + steel + composite cladding + composite overlay.
Faux Wood-Look Composite
Faux wood composite cladding and overlay materials are molded from real wood pieces to reproduce the natural texture and grain patterns of the species they emulate. Choose from Clear Cypress or Mahogany in several paint and stain colors for a look that is distinctly yours.
Design Customization

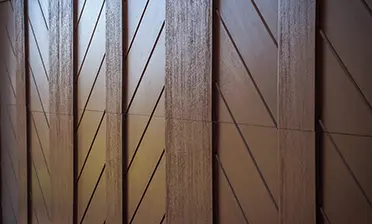

A Chevron door is a statement-maker. The cladding pieces are cut at a 45-degree angle and fit together at a point creating a zigzag pattern made of “V”s.
Fifteen designs with optional windows and decorative hardware come in 4 different patterns. Available primed, painted or stained in 10 standard finishes. ColorBlast® custom paint colors also offered in 1,500 shades.
Insulation
2" Intellicore® polyurethane foam insulation with a thermal break delivers a 20.4 R-value for year-round comfort.
Door Reinforcement
WindCode® door reinforcement product available for high wind load applications.
Environmental Assurance
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Design Options
Door Designs
Design 11
Design 12
Design 13
Design 31
Design 32
Design 33
Design 36
Design 37
Cladding Design Options
Option-A
Option-D
Option-U
Option-V
Top Sections
Window Designs
REC11
REC13
REC14
SQ23
SQ24
ARCH1
ARCH3
ARCH4
ARCH1A-SQL
ARCH1-SQL
TOP11
TOP 12
TOP 13
WINDOW DESIGNS
ARCH13
ARCH14
Specialty Glass Options
Clear
Seeded
Rain
Frosted
Obscure
Material Options
Composite Overlay Materials
Clear Cypress
Mahogany
Composite Cladding Materials
Clear Cypress
Mahogany
Hardware Designs
Plates
Spade Step Plate
Spear Step Plate
Colonial Step Plate
Handles
Spade Lift Handles
(included)
Spear Lift Handles
Colonial Lift Handles
Decorative Lift Handles
Ring Door Knocker
Escutcheon Plates
Twisted "L" Handles
Hinges
Spade Strap Hinge
Spear Strap Hinge
Colonial Strap Hinge
Construction
Canyon Ridge® Chevron garage doors are built with a strong steel base door topped with low-maintenance, moisture-resistant composite overlays that won't rot, warp or crack.
- Composite Overlay
- Composite Cladding
- Steel
- 2" Intellicore® Polyurethane Insulation
- Steel
Intellicore® Insulation
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.
Additional Features
- Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
- Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
- A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
- All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
- Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
- Window grilles are removable for easy cleaning.
Color Options
Color Options
Natural Finish
Medium Finish
Dark Finish
Walnut Finish
Slate Finish
Espresso Finish
Black Finish*
White Finish*
Primed (No Finish)
Bronze*
Charcoal*
*Available on select models.
Black, white, bronze and charcoal only available in Mahogany.
Two-tone option available. One color for the base layer (steel) and one color for the top layer (composite overlay).
Custom color available through ColorBlast® program.
